Stop Leck Set für HVAC Anlagen WIGAM LEAK-STOP-HVAC

LEAK-STOP is the new stop leak for HVAC systems.

The easy and fast solution to seal with just one application all the leaks that are difficult to detect and reach with conventional tools.

Leak-Stop system is based on the use of a sealing fluid that reacts in the presence of leaks as it comes into contact with both refrigerant and oxygen.

Does not crystallizes

Usable with all refrigerants

Compatible with 100% of the systems on the market

Complete compatibility with gaskets and seals of the HVAC system

The maximum size of the leak that can be sealed is 708g/year (in 24 hours)

The fluid can seal leaks that are subsequent to the date of the intervention on the system (6-12 months)

The fluid must be introduced into the system only from the low pressure side with the system in vacuum or with the system charged, but with an internal pressure lower than 13 bar

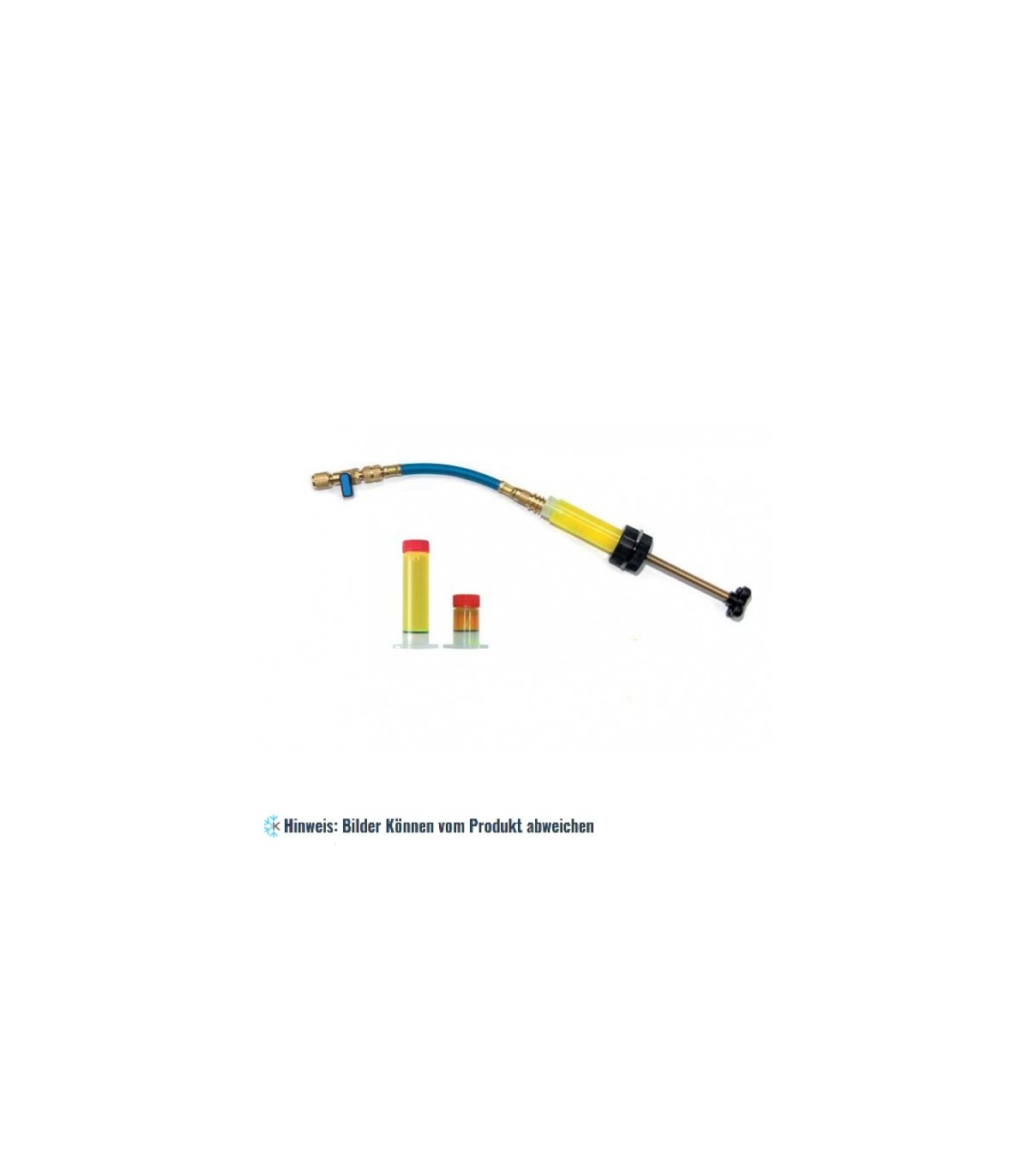

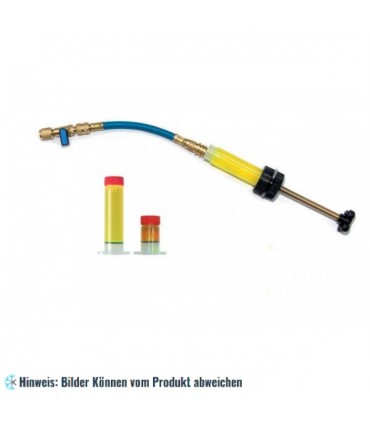

The kit includes:

1 injection system

1 pre-charge cartridge (7,5ml)

2 LEAK-STOP cartridges (30 ml)

1 flexible hose with ballvalve

Suggested quantities:

HVAC system refrigerating capacity

< 18000 btuh 300ml oil

18000 60000 BTU/H 900ml oil

60000 120000 BTU/H >900ml oil

>120000 BTU/H

Suggested fluid quantity

30ml Rapp.-ratio10:1

60ml Rapp.-ratio 15:1

30ml every 600ml oil Rapp.-ratio 20:1

30ml every 1200ml oil Rapp.-ratio 40:1

MAX 13 bar
